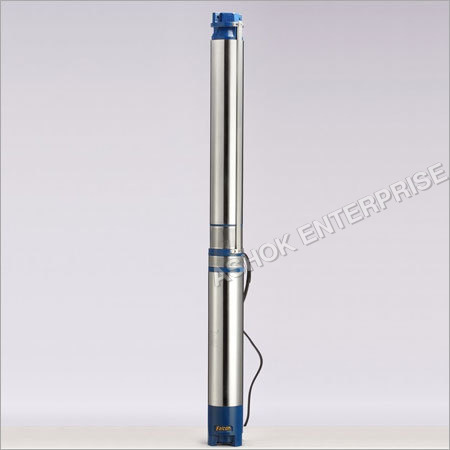

Borewell Submersible Pumps

Borewell Submersible Pumps
Borewell Submersible Pumps
Product Code : V-4
Brand Name : FALCON
Price And Quantity
  • Unit of Measure
  • Piece/Pieces
Product Description

With a promise to provide the best quality products to the clients, our organization is engaged in trading and supplying a complete gamut of  Borewell Submersible Pumps to our premier clients. Owing to their compact design and superior construction these pumps are known for their excellent performance, hassle-free operation and zero maintenance. Furthermore, these Borewell Submersible Pumps are manufactured using high quality stainless steel with the help of advanced machines at our vendors' end.

Specification of 4'' Submersible Pump

FALCON 4â€Â Submersible Borewell motors are water filled, suitable for 4â€Â borewell made with superior quality raw material, unique design to ensure best in-class energy efficient motors for lowest operating cost and zero maintenance. Pump has Matchless and unique hydraulic design of bowl, impeller and diffuser put together construct the pump most energy efficient. Highly sophisticated engineering and State of the art manufacturing process results the world class quality and consistency.
Product Specification
Motor:
Available in Single Phase Three Phase in 1.0HP to 6.0 HP(0.75 kw to 4.4 kw)
Pump:
Working condition for head range 75 feet to 1198 feet (Upto 363 Mtrs)
Flow range upto 32.4 M3/Hour (540 Lpm)

Salient Features
Motor:
Pure AISI 202 S.S. grade outer shell
AISI 410/431 S.S. grade motor shaft.
Upper Housing, Lower Housing base and Motor Base are made of C.I. FG-200 /FG-220 Grade.
100% pure EC Grade copper employed. Made out of which winding wire, dual coated with insulation Class-B
M-45 grade silicon stamping
Flange available as per NEMA standard
High thickness LTB-4 Bush
Water lubricated thrust Ptfe bearing which ensures zero maintenance working.
SAND PROOFâ„¢ design of mechanical seal rings and Sand Guards protection

Pump:
Hydraulic compact and high efficient design saves electricity by 20% to 40% in compare to old conventional designed pumps
Hydraulic, highly efficient design of Pump bowls.
Engineering Glass filled Plastic Bowl set with

Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)


"We are mainly providing our products in Gujarat, Maharashtra and nearby areas."
