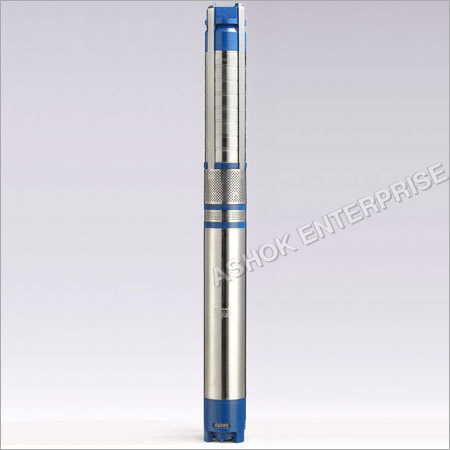

Falcon Pump

Falcon Pump
Falcon Pump
Product Code : V-6
Brand Name : FALCON
Product Description

Keeping in pace with the latest innovations of the industry, we are engaged in trading and supplying Falcon Pump to the clients. These pump sets are sourced from the leading vendors of the market that are known for their quality credibility in the market. Our offered range of pumps can be availed in single phase and three phase models. Our offered Falcon Pump provide excellent head range of 80 feet to 1500 feet.

Specification of Borewell Pump

As an eminent enterprise, we are instrumental in offering an assorted gamut of Borewell Pump.
Motor:
Available in single phase 3.0 HP to 5.0 HP (2.2 Kw to 3.7 Kw)
Three Phase 3.0 Hp to 30 Hp (2.2 Kw to 22 Kw)
Pump:
Working condition for head range 80 feet to 1500 feet (Upto 450 Meters)
Flow range upto 80 M3/Hour

Salient Features
Motor:
Pure stainless steel AISI 410/431 S.S. grade motor shaft and outer shell
Upper Housing, Lower Housing and Motor Base are made of C.I. FG-220 /FG-250 Grade.
100% pure EC Grade copper employed. Made out of winding wire, dual coated with insulation Class-B
M-45 grade silicon stamping
Flange available as per NEMA standard
High thickness LTB-4 Bush
Water lubricated thrust carbon bearing with heavy Tilting Pad of Stainless Steel AISI-304 S.S. grade which ensures zero maintenance working.
SAND PROOFâ„¢ design of mechanical seal rings and Sand Guards protection

Pump:
Hydraulic compact and high efficient design saves heavy electricity in compare to old conventional designed pumps
Stainless Steel AISI - 304 Grade Investment casting non magnetic pump bowls.
Stainless Steel AISI - 410 Grade pump impellers, available for mixed flow / radial flow
Stainless Steel AISI - 410 Sleeves are reinforced with chromium for proven wear resistance
Special LTB -4 and Nitrile Rubber Bush for proven anti-wear resistance
Pure Stainless Steel AISI 410 Grade Pump Shaft
Pump- Motor Coupling available as per ‘NEMA’ standard
Suction



"We are mainly providing our products in Gujarat, Maharashtra and nearby areas."
